Separate internal workload networking from deliberate external exposure
Sidecarless service meshes and outbound tunnels can both affect how traffic reaches an application, but they solve different architectural problems. Sidecarless is a broad architectural description, not a universal technical specification. A concrete implementation such as Istio Ambient moves selected mesh processing out of application pods, while an outbound tunnel publishes a chosen private service through a connection initiated from inside the network. This guide compares those responsibilities, shows where Kubernetes ingress fits, and provides a concrete Localtonet HTTP tunnel workflow without implying that tunneling replaces mesh policy.
📋 What's in this guide

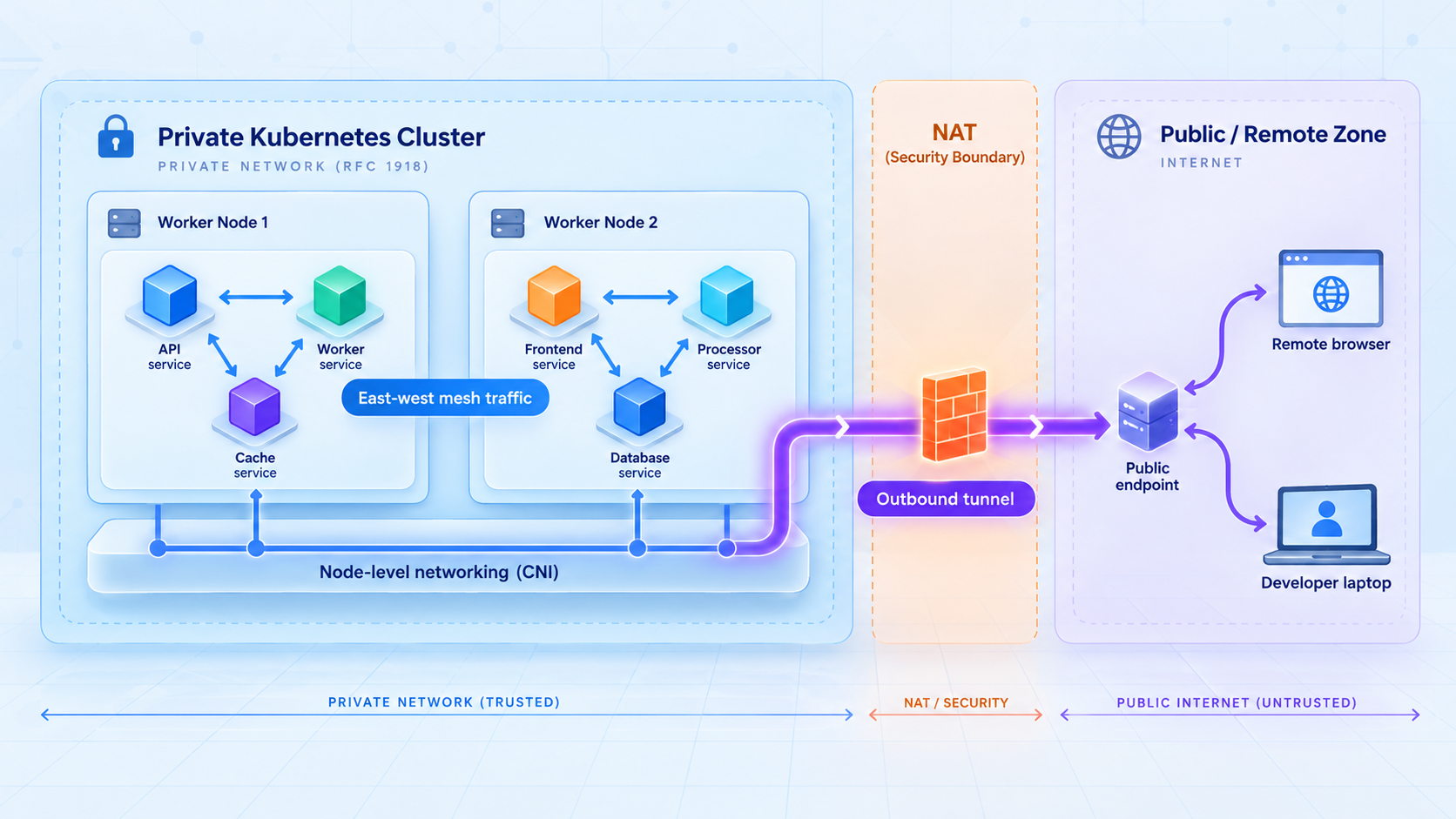

Sidecarless service mesh vs outbound tunnel: the quick answer
A sidecarless service mesh is an internal application-networking architecture in which mesh data-plane functions are not delivered through a dedicated proxy beside every application container. The term describes a design direction rather than a single standard. Different products can use different traffic-capture mechanisms, proxy placements, policy models, and feature boundaries, so the word “sidecarless” alone does not establish exactly how identity, transport security, authorization, routing, or telemetry work.
Istio Ambient is one concrete example. Its architecture separates a secure Layer 4 data plane, implemented with per-node ztunnel components, from optional Layer 7 processing delivered through waypoint proxies. The current official Istio Ambient architecture documentation describes those components, their responsibilities, and how workloads participate without receiving an injected sidecar. Those details belong specifically to Istio Ambient and should not be generalized to every product described as sidecarless.
An outbound tunnel addresses a different requirement. A client inside a private network establishes an outbound connection to a relay. The relay then provides a public URL or public host and port for a deliberately selected local service. With Localtonet, this can expose a service, device, or AI agent without inbound router port forwarding, inbound firewall changes, VPN setup, or a public IP address.
Moving from per-pod sidecars to an ambient data plane does not automatically make an application publicly reachable. It does not decide whether an application should be public, provide a public address by itself, or remove the need for an ingress design. Likewise, adding an outbound tunnel does not create a cluster-wide service mesh. A tunnel does not replace east-west workload identity, service discovery, mesh authorization policy, or internal traffic governance.
Use a service mesh to govern communication among participating workloads. Use Kubernetes ingress, a gateway, a load balancer, an outbound tunnel, or another deliberate edge when traffic must enter from outside the private environment. Use both when the exposed endpoint also participates in an internally governed service architecture.
This distinction prevents a common design error: comparing the two technologies as if they were interchangeable ingress products. A sidecarless mesh changes where internal network processing occurs. An outbound tunnel changes how a selected endpoint can be reached across a network boundary. They can complement one another, but neither inherits the other layer's security responsibilities.

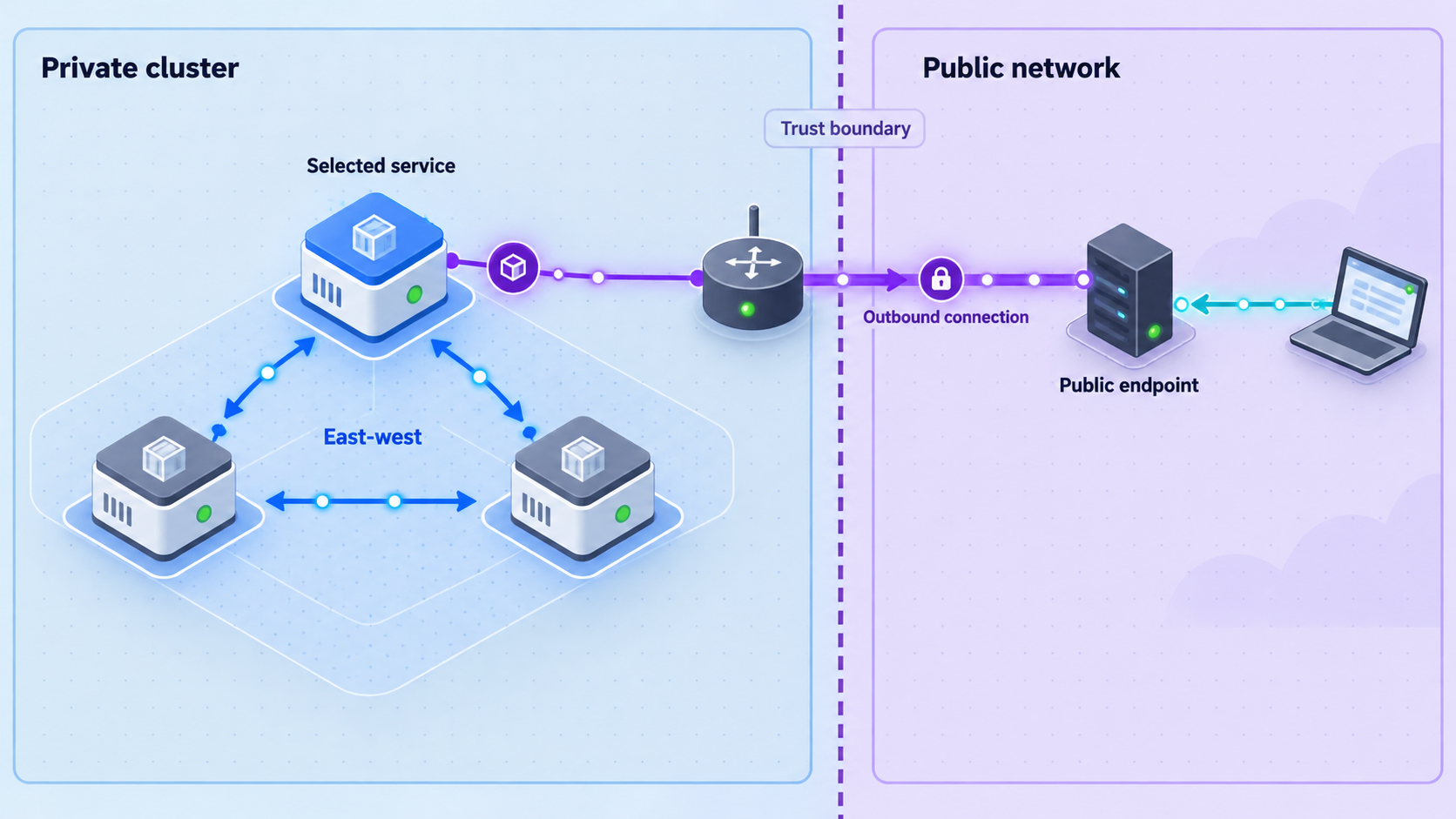

Start with traffic direction and the trust boundary
Before choosing a networking component, describe the intended flow in plain terms. Identify the source, destination, application protocol, trust boundary, audience, and expected lifetime. This exercise usually reveals whether the problem belongs to a service mesh, cluster ingress, an outbound tunnel, private networking, or several coordinated layers.
East-west traffic
East-west traffic normally means communication among application components rather than traffic entering through a public user-facing edge. In Kubernetes, examples include an API calling an internal account service, a worker connecting to a queue, or one namespace reaching a service in another namespace. A service mesh is relevant when a platform team needs consistent communication policy or observability across participating workloads.
A sidecarless architecture changes how those mesh capabilities are delivered. It does not imply that the data plane has disappeared. Traffic still has to be captured, identified, secured, authorized, routed, or observed by some component. Platform teams must evaluate the chosen implementation's failure domains, resource allocation, upgrade procedures, enrollment boundaries, policy semantics, traffic-capture mechanism, protocol support, and compatibility with the cluster network.
North-south traffic
North-south traffic crosses an application boundary. It can arrive through a load balancer, ingress controller, gateway, reverse proxy, outbound tunnel relay, or another explicitly designed edge. This path must answer questions that an internal mesh alone cannot settle: Is the destination intended to be public? Which address should remote clients use? Where is external authentication enforced? Is exposure permanent or temporary? What happens when the private environment cannot accept a direct inbound connection?
Kubernetes defines Ingress as an API object for managing external access to services, typically HTTP, and notes that an ingress controller is required for an Ingress resource to have an effect. The official Kubernetes Ingress documentation also explains that Ingress does not expose arbitrary ports or protocols. That reinforces an important architectural point: cluster ingress is its own design concern, and the appropriate mechanism depends on protocol and operational requirements.
An outbound tunnel is useful when the destination is behind carrier-grade NAT, a home router, a restrictive network, or another boundary where direct inbound routing is unavailable or undesirable. Because the Localtonet client establishes the relay connection from the private side, the network does not need an inbound port-forwarding rule for the selected service. That solves reachability, but it does not decide whether the service is safe to publish.
Control-connection direction is not request direction
The phrase “outbound tunnel” describes how the tunnel is established. It does not mean that all later application requests originate from the private service. The Localtonet client opens an outbound connection to our relay. A remote user can then send traffic through the assigned public endpoint toward the configured local target.
The target can be a service on the same machine as the Localtonet client or another service reachable from that device. For a Kubernetes-adjacent design, the supported statement is therefore limited and precise: the client device must have a permitted route to the chosen service address and port. Running the Localtonet client inside Kubernetes is not established as an officially documented deployment path by the product evidence available for this article.
This guide does not provide a Localtonet Deployment, DaemonSet, container image, service account, Secret manifest, health probe, or command-line invocation. Those details are not established by the available product documentation. Use a supported client installation on a host or device that can reach the service unless current Localtonet documentation explicitly establishes another deployment path.
Istio Ambient as a concrete sidecarless example
“Sidecarless service mesh” is not a standardized feature checklist. To discuss specific behavior accurately, this section uses Istio Ambient as a named example. Other products may place their data plane differently or provide a different division between transport and application-aware processing.
Node-level Layer 4 processing with ztunnel
In Istio Ambient, ztunnel provides the secure Layer 4 data plane and runs as a per-node component rather than as a proxy injected into every application pod. According to Istio's architecture documentation, ztunnel handles functions associated with secure workload connectivity, including workload identity-aware transport and Layer 4 authorization. This allows enrolled workloads to receive ambient mesh capabilities without carrying a traditional sidecar container.
The architectural benefit is separation of lifecycles. Application pods do not need an injected general-purpose proxy for the ambient Layer 4 path, and updates to the node-level data-plane component are not the same operation as rebuilding each application pod. That does not eliminate data-plane operations. It changes their placement, resource-sharing model, failure boundaries, and upgrade procedures.
Optional Layer 7 processing with waypoint proxies
Istio Ambient does not make every ztunnel an HTTP application proxy. Application-aware Layer 7 functions are handled through waypoint proxies where those capabilities are required. Waypoints can apply richer policy and traffic processing for the workloads within their scope.
This distinction matters when evaluating a statement such as “ambient networking separates Layer 4 from Layer 7.” That statement is accurate for the documented Istio Ambient design, but it should not be presented as a universal property of all sidecarless meshes. It also does not mean Layer 7 behavior appears automatically. Teams must understand when a waypoint is required, which traffic it processes, and how policy attachment and routing work in the Istio version they deploy.
Workload identity and authorization remain mesh concerns
Istio Ambient can use workload identity and policy as part of its internal communication model. These controls describe workloads and mesh traffic, not necessarily the human user or external system invoking the public application. An application exposed through any edge still needs appropriate end-user or machine-to-machine authentication.
A mesh authorization decision and an application authorization decision can both be required. For example, the mesh may permit an edge gateway workload to call an internal service, while the application verifies whether the external caller is allowed to use a particular account or route. Passing one layer does not imply permission at the next.
Ingress remains an explicit responsibility
Ambient enrollment does not, by itself, assign a public URL or create a route from the internet. A cluster can use Kubernetes ingress, Gateway API implementations, a load balancer, or another edge. An outbound tunnel is another possible reachability layer when the service cannot or should not accept conventional inbound traffic.
Teams evaluating Istio Ambient should use its official architecture and task documentation for exact mesh behavior. Teams evaluating Localtonet should use the current Localtonet documentation index for available clients, tunnel families, and dashboard workflows. The two documentation sets address different layers of the final design.

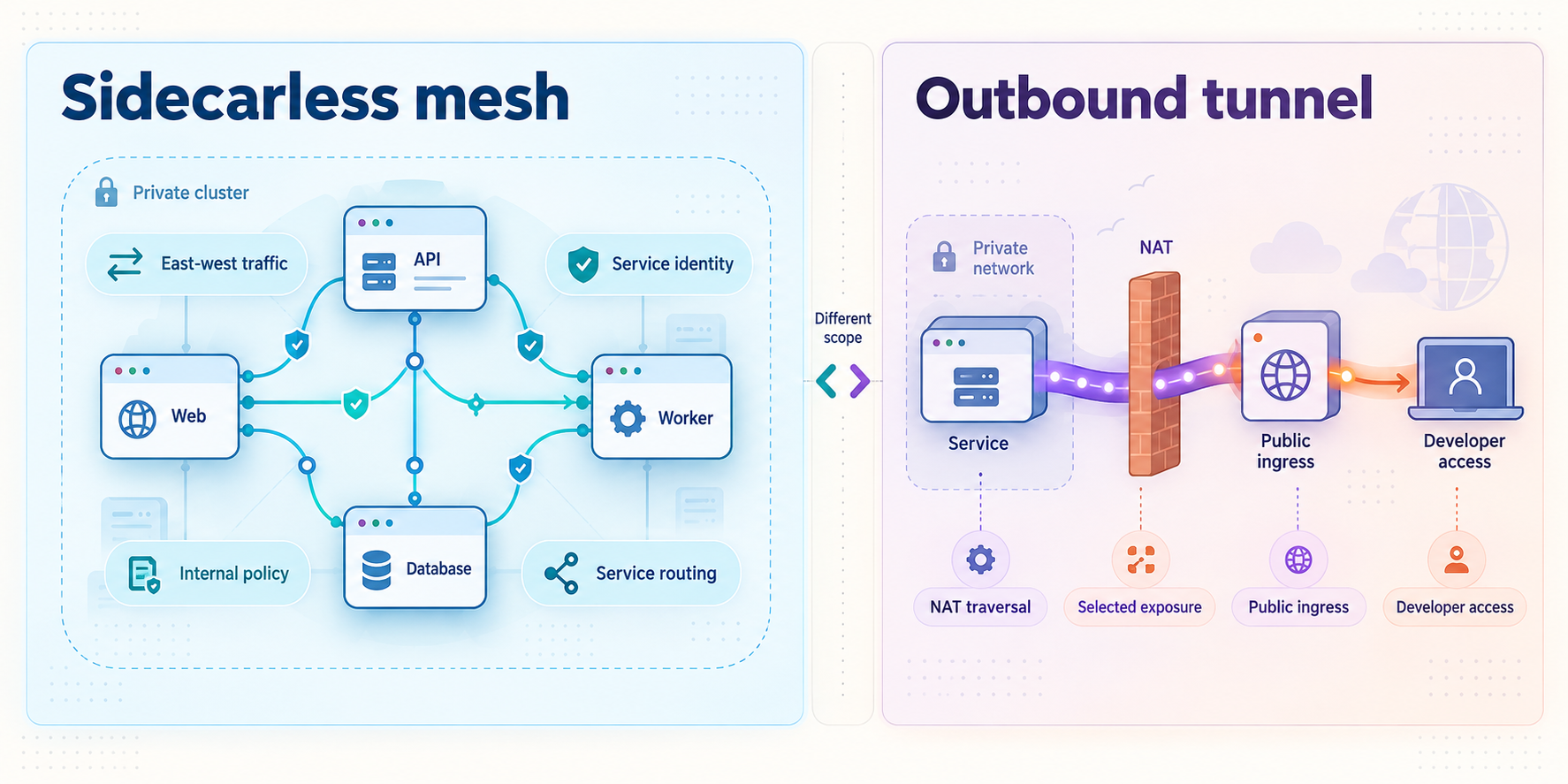

What each connectivity layer should own
Architecture becomes easier to reason about when every component has a narrow responsibility. A mesh should not be expected to solve public addressing and NAT traversal merely because it processes service traffic. A tunnel should not be expected to provide mesh-wide identity merely because it carries traffic to one service.
| Requirement | Sidecarless service mesh | Outbound tunnel | Design guidance |
|---|---|---|---|
| Internal service-to-service communication | Primary concern for participating workloads | Not a mesh replacement | Use the mesh for applicable internal communication and policy. |
| Workload identity and east-west authorization | Implementation-specific mesh responsibility | Does not establish cluster-wide workload identity | Keep internal identity in the application or chosen mesh layer. |
| Public address for a private HTTP service | Not automatically provided by becoming sidecarless | An HTTP tunnel provides a public HTTPS address | Publish only the intended target and preserve authentication. |
| Public host and port for a raw service | Outside the basic east-west purpose | Use an appropriate TCP, UDP, combined UDP/TCP, or TLS tunnel | Match the tunnel family to the real application protocol. |
| NAT traversal without inbound port forwarding | Not inherently solved by an internal mesh | Core outbound-tunnel use case | Run the client where it can reach both the relay and target. |
| Kubernetes HTTP ingress | May integrate with an ingress or gateway | Can provide an alternative public path to one target | Treat public ingress as an explicit architectural decision. |
| Temporary preview or callback | Does not itself create the external endpoint | Aligned with narrowly scoped, reversible exposure | Start for the required period, verify, then stop or delete. |
| Broad private network connectivity | Not automatically a general remote-access network | Standard service tunnels expose selected targets | Use a private networking design rather than publishing many ports. |
| Application authentication | May enforce workload policy internally | Does not remove target authentication requirements | Authenticate external users and systems at the appropriate layer. |
What a sidecarless mesh changes
The main change is the location and granularity of mesh processing. Removing per-pod sidecars can decouple network-component lifecycles from application-pod lifecycles. A concrete design such as Istio Ambient can also separate node-level Layer 4 processing from optional Layer 7 waypoint processing.
Sidecarless does not mean proxyless, policy-free, or operationally invisible. Enrollment, traffic capture, identity issuance, policy evaluation, application-aware routing, telemetry, upgrades, and incident response remain real concerns. Their exact behavior must be evaluated against primary documentation for the implementation being used.
What an outbound tunnel changes
An outbound tunnel changes the reachability path for a deliberately configured endpoint. With Localtonet, the client authenticates as a device, connects through a selected relay, and runs the selected tunnel. HTTP, TCP, UDP, combined UDP/TCP, and TLS tunnels point to a local IP address and port on or reachable from the client device.
Creating a tunnel does not mean it is running. It must be started. Its public endpoint remains available only while the selected client is connected and the tunnel is running. Stopping the tunnel removes its active public path while retaining the configuration. Deleting it removes the saved configuration.
Publishing a service creates a route to it. It does not automatically make an unauthenticated application safe. Verify the target, remove unnecessary administrative routes, require suitable authentication, apply least privilege, and retain application or mesh authorization. Never expose a cluster control plane, datastore, management console, or debug endpoint merely because it is reachable.
Choose the right layer for the actual requirement
Begin with the narrowest useful statement of need. “We need connectivity” is too broad. “A payment provider must deliver HTTPS callbacks to one authenticated application route during integration testing” is specific enough to evaluate.
Choose a sidecarless service mesh for internal workload policy
A service mesh is appropriate when the primary objective is to govern communication among workloads. Examples include enforcing which internal workload identities may connect, applying consistent service-to-service transport policy, collecting mesh-level telemetry, or introducing controlled application routing among participating services.
The decision to use a sidecarless design should be based on the selected mesh's operational model, feature support, upgrade process, data-plane behavior, policy semantics, and compatibility with the cluster network. It should not be justified solely as a way to make a private application public.
Choose an outbound tunnel for selected external reachability
An outbound tunnel is appropriate when a known endpoint in a private environment needs a public access path and conventional inbound networking is unavailable or disproportionate to the task. Examples include receiving third-party webhooks, sharing an authenticated preview, testing an integration from outside the private network, or reaching a selected TCP or UDP service.
Scope the tunnel to the actual destination and protocol. For a web application, use an HTTP tunnel to the reachable service address and port. For a raw protocol, select the matching tunnel family. Do not choose HTTP merely because a URL is convenient if the underlying application does not speak HTTP.
Choose conventional ingress for a stable cluster edge
An ingress controller, gateway, or load balancer may be the natural choice for a long-lived production application in a cluster with managed public networking. It can align with cluster-native configuration, certificate processes, infrastructure-as-code workflows, policy enforcement, and established operations.
Outbound tunnels can still be relevant where inbound paths are unavailable, but the decision should be deliberate. Evaluate expected protocols, client lifecycle, relay selection, capacity, operational ownership, access controls, monitoring, incident procedures, and plan-specific availability. We do not claim that every Localtonet option, relay, protocol, or capability is included in every subscription plan.
Choose private networking for broad network membership
If a remote user needs access to many private addresses and services as though connected to a private network, repeatedly creating public tunnels may be the wrong abstraction. Standard Localtonet HTTP, TCP, UDP, combined UDP/TCP, TLS, and File Server tunnels expose selected services or folders. They are not VPN connections.
Localtonet VPN Manager is our actual private mesh VPN feature. It includes granular firewall rules and can bridge local LANs. That use case is distinct from publishing one application endpoint through an outbound tunnel.
Use multiple layers when responsibilities overlap
A Kubernetes service can participate in a service mesh and still require an external entry path. The tunnel can handle public reachability to a selected target, while the mesh continues to govern applicable communication inside its boundary. The application still owns business-level authentication and authorization.
- Can the external client reach a public endpoint?
- Which private service receives traffic from that endpoint?
- How does traffic proceed after reaching the internal environment?
- Which workload identities may communicate inside the mesh?
- Which end users or external systems may invoke the application?
- How is public reachability disabled when it is no longer required?

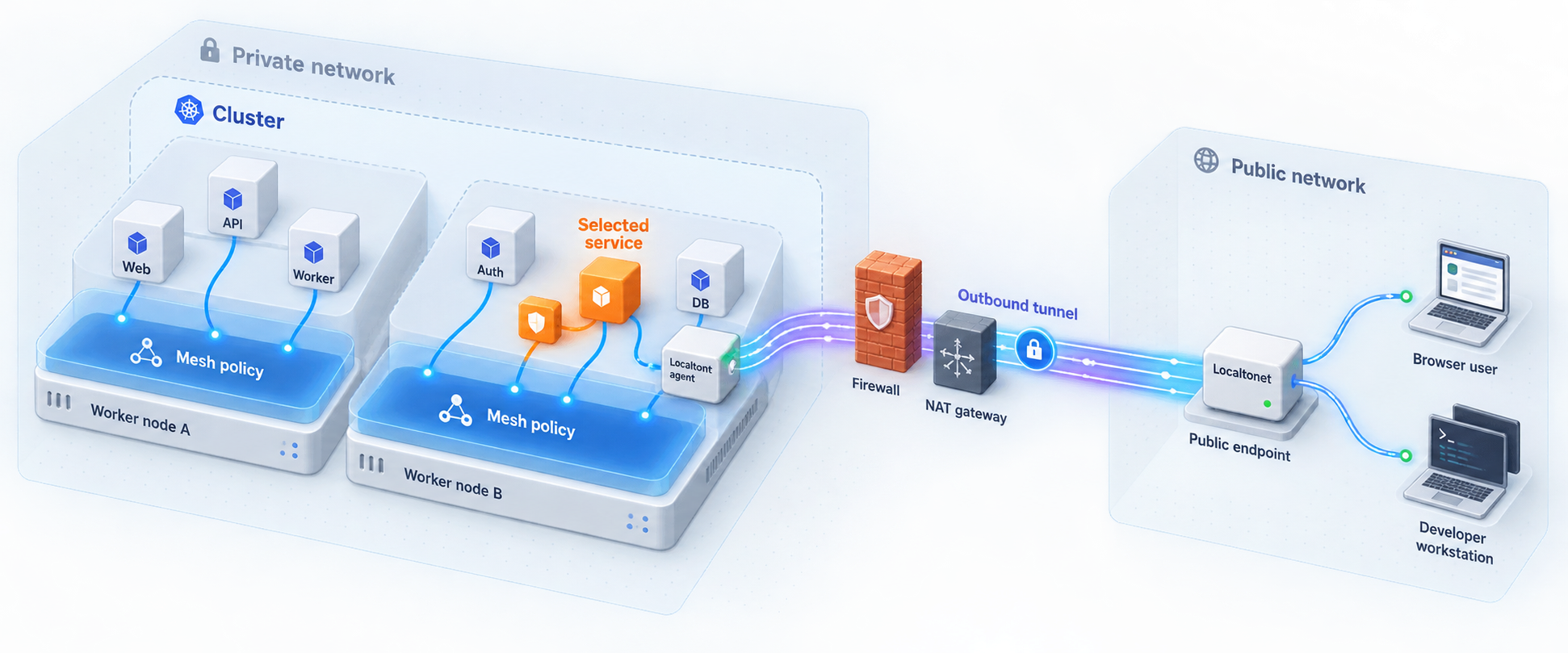

How a sidecarless mesh and Localtonet can coexist
Treat the tunnel target as an explicit edge adapter, not as an invisible shortcut around cluster policy. The Localtonet client must run on a supported device that can reach the chosen target. That target should be an intentionally exposed application interface rather than an arbitrary pod address or administrative port.
Pattern 1: target a dedicated application gateway
A dedicated application gateway or narrowly scoped service can receive tunnel traffic and forward allowed requests through the normal application path. This creates a clear point for authentication, route restrictions, request validation, rate controls available in the application stack, and application logging.
The internal mesh can continue to govern calls from that gateway to downstream workloads. The tunnel does not need to understand internal workload identities or service routing. Its responsibility is limited to connecting the public endpoint to the selected reachable target.
Pattern 2: expose a development service without permanent ingress
A team may need a callback or preview URL before permanent ingress exists. A Localtonet HTTP tunnel can publish the selected web endpoint without inbound router configuration or a public IP. Because tunnel and client state determine availability, the path can be stopped after the testing session.
Temporary does not mean unprotected. Development environments often contain verbose errors, test credentials, administration routes, mock data, or debugging interfaces. Restrict routes and require appropriate authentication just as you would at a permanent edge.
Pattern 3: expose a non-HTTP integration endpoint
Localtonet supports TCP, UDP, combined UDP/TCP, and TLS tunnel families in addition to HTTP/s. Select the family according to what the application listens for and what the remote client expects. A service mesh can still govern applicable internal connections before or after the exposed component, but it does not change the remote application's protocol.
Pattern 4: run the client on a reachable host outside the cluster
The supported conservative pattern is to run the Localtonet client on a host or device for which current installation guidance exists, then provide that device with a permitted route to the target. This keeps the tunnel lifecycle independent of application pods. Restrict that path to the required destination and port instead of granting broad access to pod, service, or node networks.
Unverified pattern: running the client inside Kubernetes
It may be technically possible to package many network clients for containers, but technical possibility is not the same as a documented Localtonet deployment path. The available product evidence does not establish an official in-cluster client image, Kubernetes manifest, secret schema, service-account model, health check, or lifecycle pattern.
Consult the current Localtonet documentation index for the client and operating-system guidance available at the time of deployment. This article does not invent an installation command or download URL where current evidence does not supply one. If an in-cluster deployment becomes documented, follow that documentation and review it against cluster admission, secret-management, egress, and network-policy requirements.
Publish an HTTP service with Localtonet
This section uses one concrete example: publishing a reachable web application with a Localtonet HTTP tunnel and a generated subdomain. It does not present one generic sequence as exact documentation for every protocol family. For the current product workflow, also consult the Localtonet HTTP tunnel documentation.
Prerequisites
- A Localtonet account. If needed, use the Localtonet registration page.
- A supported device or host on which the current Localtonet client can be installed and run.
- A web service reachable from that device by a known local IP address and port.
- An application authentication and authorization plan appropriate for public reachability.
- Permission to create the public path and a clear owner for stopping or deleting it.
- Outbound connectivity from the client device to the Localtonet relay.
The available evidence establishes that users install and run the Localtonet client for their operating system, but it does not provide a stable cross-platform installation command suitable for reproduction here. Installation packages and procedures can change. Use the current operating-system instructions available through the Localtonet documentation or dashboard rather than copying an old command from an unrelated tutorial.
Before configuring the tunnel, verify the application directly from the client device. If the application is reachable at a private address from a laptop, server, or other supported host running Localtonet, that reachable address and port can be the target. Do not use an address that exists only inside an unrelated network namespace.
A Localtonet auth token identifies the client device that runs the tunnel. Treat it as a secret. Do not place it in source control, screenshots, articles, public manifests, tickets, chat messages, or client-side application code. Do not guess or reuse an undocumented token.
Install and run the current Localtonet client
Follow the current installation path for the operating system of the device that can reach the web service. Start the client and keep it running. This device establishes the outbound relay connection and must remain connected for the tunnel to remain available.
Authenticate or select the client device
Use the device-specific auth token through the supported client workflow, or select the already registered device in the dashboard. Keep the token private and use the intended device rather than a token copied from another environment.
Select an available relay server
Choose a relay server or region from the values currently displayed by Localtonet. Available values can vary by product state, plan, or deployment, so this guide does not hardcode a relay code that may become invalid.
Create an HTTP tunnel for the web target
Select the HTTP tunnel family. For this example, choose Random Sub Domain as the Process Type, then configure the local IP address and port of the web application as seen from the client device. Custom Sub Domain and Custom Domain are alternative HTTP process types, but exact availability and custom-domain DNS requirements must be checked in the current product documentation.
Start the tunnel and use the assigned HTTPS address
Creating the tunnel saves its configuration but does not make it active. Press Start. Once the selected device is connected and the tunnel is running, use the assigned public HTTPS address to reach the configured local web target.
Verify externally, monitor status, then stop or delete
Test the public address from a network outside the private environment. Confirm the intended application and route respond, authentication is enforced, and unrelated routes remain unavailable. Stop the tunnel to remove its active public path while retaining the configuration. Delete it when the saved configuration is no longer required.
What to verify locally
A tunnel cannot repair an unreachable or incorrectly configured application. From the Localtonet client device, confirm that the target address routes correctly, the service listens on the intended port, and host or cluster policy permits the connection. Test the exact HTTP route rather than only checking whether the port accepts a connection.
If the target is associated with Kubernetes, prefer a stable and intentionally exposed service interface over an individual pod address. Pod addresses and placement can change. The exact correct target depends on how the supported client host reaches the cluster, so validate the route and policy in your own environment.
What to verify publicly
Test from a separate network when possible. Confirm the response comes from the expected application, authentication is required, sensitive routes are unavailable, and the application records sufficient information for operational review. For a webhook integration, submit a representative signed or authenticated request rather than relying only on opening the URL in a browser.
Protocol alternatives
| Tunnel family | Use it for | Target and public access model |
|---|---|---|
| HTTP/s | Web applications, APIs, and HTTP callbacks | Points to a reachable local IP and port and provides a public HTTPS address. |
| TCP | Applications that use a raw TCP connection | Points to a reachable local IP and port and provides a public host and port. |
| UDP | Applications that communicate over UDP | Points to a reachable local IP and port. Test with the real UDP-aware client. |
| Combined UDP/TCP | Applications that require both transports | Preserves a combined transport requirement rather than forcing one protocol into another. |
| TLS | Compatible TLS-based service exposure | Points to a reachable local IP and port. Confirm the application's TLS expectations. |
These alternatives share the basic Localtonet lifecycle, but their protocol behavior and product forms are not identical. Use the protocol-specific documentation available from the Localtonet documents index instead of assuming that every field in the HTTP workflow appears unchanged for TCP, UDP, combined UDP/TCP, or TLS.
Monitor connection state without confusing it with application health
Localtonet provides platform-wide Token/Tunnel webhooks for Connected and Disconnected state changes in a selected Token Group. The webhook POST body includes Id, ActionDate, Type, and Status. See the Localtonet Token/Tunnel webhook documentation for the current platform workflow.
A Connected tunnel does not prove that the application is healthy or that a particular route succeeds. It proves a lifecycle state at the Localtonet layer. Keep end-to-end application monitoring separate. These platform webhooks are also distinct from File Server file-event webhooks, which concern upload, delete, rename, and move events.
Security design for a layered deployment
Treat every transition between layers as an explicit trust-boundary crossing. The public endpoint, relay path, Localtonet client, target service, mesh edge, downstream workload, and end user can each have a different identity and threat model. Security at one layer does not automatically cover the next.
Expose a purpose-built target
Prefer a dedicated application endpoint with a narrow route set over a broad administrative interface. If an integration needs one webhook route, avoid publishing the entire management application. If a reviewer needs a preview, do not expose diagnostics, metrics, framework consoles, or unrelated APIs through the same listener.
Preserve application authentication
The tunnel provides reachability to the configured target. The target must still authenticate callers as appropriate. For machine-to-machine callbacks, use the integration's documented credential or request-signing model. For human users, use an established authentication flow. A difficult-to-guess public address is not a substitute for authorization.
Apply least privilege around the client
The client host should have only the operating permissions and network reachability it requires. In a Kubernetes-adjacent deployment, permit access to the selected service and port rather than granting broad routes to pod, node, control-plane, or datastore networks. Protect the device token with the organization's secret-management process.
Keep mesh policy intact
If the target gateway participates in a mesh, downstream calls should continue through the intended mesh-controlled path. Do not create an alternate route solely to avoid workload authorization. The tunnel is an external edge path, not a mechanism for bypassing firewall, cluster, or mesh controls.
Separate workload authorization from end-user authorization
Mesh policy may decide whether one workload identity can connect to another. Application policy decides whether the external person or system can perform a business action. A gateway that is permitted to reach a service must still pass enough authenticated context for the application to make the correct decision.
Plan revocation before exposure
Decide who can stop and delete the tunnel, how access to the client device is revoked, and what happens if the host is lost or decommissioned. Temporary exposure should have an owner and an end time. Ongoing exposure should include client connectivity, tunnel state, target health, and end-to-end request success in operational reviews.
Kubernetes APIs, node administration interfaces, database administration ports, container runtimes, internal dashboards, and debug consoles require specialized protection. Do not create a public path merely for convenience. Publish a narrowly designed application interface, enforce authentication, and follow organizational network and access-control policy.
Operations, verification, and troubleshooting
Troubleshoot from the innermost dependency to the outermost endpoint. Starting only with the public address can hide the difference between an application fault, mesh denial, target-address error, disconnected device, stopped tunnel, or external authentication failure.
1. Confirm the application is healthy
Test the service at its normal local or cluster access point. Confirm that it listens on the expected protocol and port and returns the correct application response. Fix local application failures before investigating the tunnel.
2. Confirm reachability from the Localtonet device
Test the exact target from the environment where the supported Localtonet client runs. A service may work inside its own pod but remain unreachable from another host or network. Review the target address, service endpoints, routes, network policy, and host firewall according to the deployment architecture.
3. Confirm mesh enrollment and policy behavior
If the target participates in Istio Ambient or another mesh, determine whether traffic enters through an enrolled and authorized path. A denial can be an expected policy result rather than a tunnel failure. Use the mesh implementation's documented status and telemetry tools to identify where enforcement occurred.
4. Confirm the selected device is connected
The tunnel depends on the selected client device. If that device is offline, unauthenticated, stopped, or unable to reach the relay, the public endpoint cannot forward traffic to the target. Confirm device connectivity before changing application or mesh policy.
5. Confirm the tunnel is started
Creating a tunnel does not start it. Check its lifecycle state and start it when appropriate. If it disconnects repeatedly, investigate the client host's outbound connectivity, power state, process lifecycle, local firewall, and network policy.
6. Confirm the protocol and target
An HTTP client cannot meaningfully validate an arbitrary UDP service, and a TCP tunnel should not be expected to provide HTTP-specific behavior. Confirm that the tunnel family matches the application protocol and that the local IP address and port identify the correct service from the client device's perspective.
7. Test the public endpoint externally
Use a representative client from outside the private network. For HTTP, test the required route, method, headers, authentication, and payload. For raw protocols, use the real application client or a protocol-aware diagnostic tool. Record whether a failure occurs before connection, during protocol negotiation, during authentication, or during application processing.
8. Review lifecycle dependencies
If access disappears after a rollout, restart, or node replacement, check whether the target address changed or whether the Localtonet client was coupled to an ephemeral environment. A sidecarless mesh can alter mesh lifecycle coupling, but it does not preserve an independently deployed tunnel client or repair an obsolete target address.
| Symptom | Likely layer | What to check |
|---|---|---|
| The application fails locally | Application or workload | Process health, listener, dependencies, configuration, and local logs |
| The app works locally but not from the client device | Routing, service discovery, firewall, or cluster policy | Target address, port, service endpoints, network policy, and client route |
| The client reaches the target but the public endpoint is unavailable | Localtonet client or tunnel lifecycle | Device connectivity, authentication state, relay reachability, and Start state |
| The connection succeeds but the application denies access | Application or mesh authorization | User credentials, workload identity, route permission, and expected audience |
| One HTTP route works but another fails | Application routing or gateway policy | Path, method, host handling, authentication, and gateway route configuration |
| Access stops after a restart or rollout | Lifecycle or target stability | Client process, device state, tunnel state, service address, and placement |
| A raw-protocol client cannot negotiate | Protocol mismatch or listener configuration | TCP versus UDP, TLS expectations, selected tunnel family, and target port |
| Localtonet reports Connected but requests fail | Target, mesh, or application layer | End-to-end target health, policy decisions, authentication, routes, and logs |
Operational ownership
Assign ownership across layers before an incident. A platform team may own mesh enrollment and internal policy, an infrastructure team may own the Localtonet client host, and an application team may own authentication and route behavior. A shared runbook should show how those responsibilities connect without assuming that one dashboard explains every failure.
Monitoring boundaries
At minimum, distinguish application health, target reachability, client device connectivity, tunnel status, mesh authorization outcomes, external authentication outcomes, and end-to-end request success. Localtonet Token/Tunnel webhooks can report Connected and Disconnected changes, but they do not replace application monitoring or request-level diagnostics.
Frequently asked questions
Is “sidecarless service mesh” a standard architecture?
No. It is a broad architectural description for delivering mesh capabilities without a dedicated proxy beside every application container. Products can differ in traffic capture, proxy placement, identity, authorization, and Layer 7 processing. Istio Ambient is one concrete implementation, not a universal definition for every sidecarless mesh.
Does Istio Ambient replace Kubernetes ingress?
No. Istio Ambient changes how mesh data-plane capabilities are delivered to participating workloads. Public ingress remains an explicit architectural responsibility. A cluster can use an ingress controller, gateway, load balancer, outbound tunnel, or another suitable edge.
Is a Localtonet HTTP or TCP tunnel a service mesh?
No. A Localtonet tunnel publishes a selected local service through a public URL or public host and port. It does not provide a cluster-wide workload identity, east-west policy, or service-to-service routing model. It can coexist with a mesh by forwarding external traffic to an intentionally selected target.
Is a standard Localtonet tunnel a VPN?
No. HTTP, TCP, UDP, combined UDP/TCP, TLS, and File Server tunnels expose selected services or folders. Localtonet VPN Manager is our private mesh VPN feature and includes granular firewall rules for private networking use cases.
Can a Localtonet tunnel work through NAT without port forwarding?
Yes. The Localtonet client establishes an outbound connection to our relay, so the selected service can be exposed without inbound router port forwarding, a public IP address, or VPN setup. The client still needs permitted outbound connectivity and a valid route to the target service.
Where should the Localtonet client run for a Kubernetes service?
Run it through a currently supported installation path on a device that can reach the selected service address and port. The available evidence does not establish an official in-cluster Kubernetes deployment, so this guide does not prescribe a manifest, container image, or service account. Restrict the supported client host to the network access it actually needs.
Does creating a Localtonet tunnel make it active immediately?
No. Creating the tunnel saves its configuration. You must press Start, and the selected client device must remain connected. Stop the tunnel to remove the active public path while retaining its configuration, or delete it when the configuration is no longer needed.
Which Localtonet tunnel type should expose a web service?
Use an HTTP tunnel for an HTTP web application or API. Use TCP, UDP, combined UDP/TCP, or TLS only when those options match the application's real protocol and the remote client's expectations. Verify current options and plan availability in the dashboard and protocol-specific documentation.
Can Localtonet bypass service-mesh authorization or cluster policy?
It should not be designed or described that way. The client needs a permitted route to the selected target, and the application and mesh should continue to enforce their intended controls. Use the tunnel as a deliberate external access path, not as a method for avoiding authorization, firewall rules, or organizational policy.
Expose the intended endpoint, not the whole network
With Localtonet, you can publish a selected HTTP or raw-protocol service while keeping internal mesh responsibilities separate. Start with a supported client device, a narrowly scoped target, and appropriate application authentication. Verify the complete path, monitor client and tunnel state, then stop or delete the tunnel when external access is no longer required.
Get Started Free →
