How to Self-Host AdGuard Home and Block Ads Across Your Entire Network

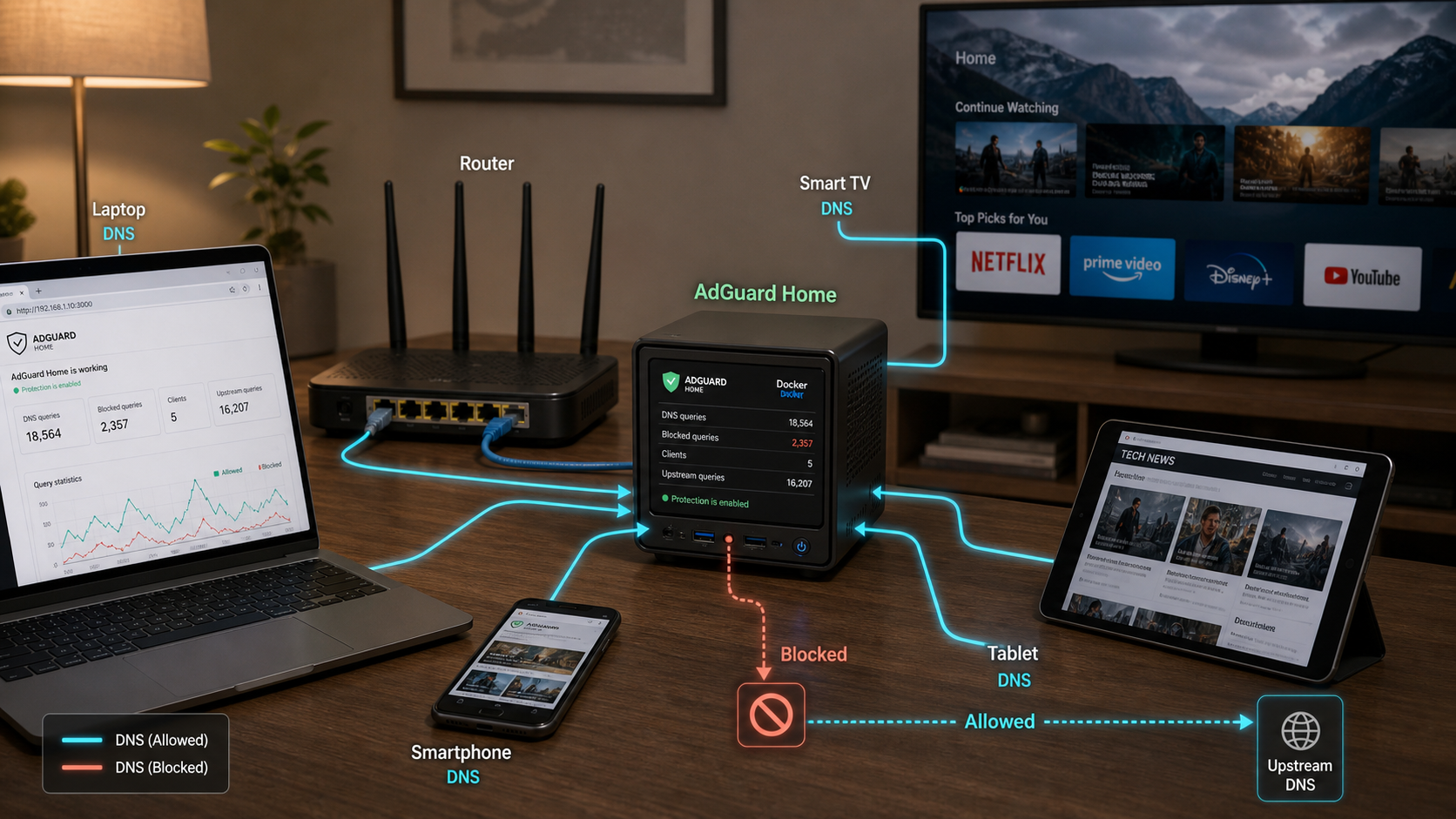

How AdGuard Home DNS filtering works

DNS translates names such as example.com into IP addresses. In this design, your router advertises AdGuard Home as the DNS resolver for LAN clients. Clients send queries to TCP or UDP port 53 on the server. AdGuard Home checks its filtering rules and either blocks a request or resolves it using its cache or configured upstream resolvers.

A blocked query does not always produce an empty response. Depending on the blocking mode and record type, it might return a null address, NXDOMAIN, REFUSED, or another configured answer. Inspect the query log to confirm that filtering caused the result and identify the matching rule.

What DNS filtering cannot do

DNS filtering operates on domain names, not individual page elements or URL paths. It cannot reliably remove advertisements served from the same domain as desired content without blocking that content too. Cosmetic selectors and scriptlets belong in a browser content blocker, which can complement DNS filtering.

Network-wide filtering also depends on resolver selection. Hardcoded DNS, browser DNS-over-HTTPS, Android Private DNS, VPN-provided resolvers, and external IPv6 resolver advertisements can bypass AdGuard Home. Verify the clients rather than assuming an IPv4 router setting controls every request.

Prepare the host and recovery access

This deployment uses a Linux Docker host on a trusted private LAN, Docker's ordinary bridge networking, and an IPv4 DNS listener. It does not configure AdGuard Home's DHCP server, host networking, public encrypted DNS endpoints, or native IPv6 DNS service.

If Docker is not installed, use the distribution-specific instructions in the Docker Engine installation guide and install the Compose plugin. Package repositories and installation commands differ by distribution, so this guide begins with a working Docker installation rather than prescribing one universal package command.

docker --version
docker compose version
ip -4 route
ip -4 address
ip -6 address

Record the default gateway, current resolvers, DHCP lease range, and existing IPv6 configuration. Save the router's previous DNS settings. Keep a recovery device that can administer the router without depending on AdGuard Home. Commands using SERVER_LAN_IP below require substitution with your actual private IPv4 address.

Plan the DNS address and enforce the access boundary

Use an explicit private address, not a wildcard publication

Reserve the host's address in DHCP, or choose a static address outside the dynamic pool while preserving the correct gateway and subnet. The Compose example requires ADGUARD_LAN_IPV4 and publishes DNS only at that address. It deliberately avoids "53:53", which publishes on all host addresses by default.

An address-specific mapping limits the destination address; it is not a source-subnet allowlist or an ingress-interface firewall rule. Another network that can route to that address may still reach the published service. Your policy must allow TCP and UDP port 53 from trusted client subnets and deny them from guest networks, untrusted VLANs, VPN peers without permission, and public paths.

Use the following deployment gate:

1. Identify the backend: inspect the Docker daemon configuration and the firewall system managing this host. Determine whether Docker uses its iptables or nftables backend.
2. Implement source restrictions: for the iptables backend, follow Docker's DOCKER-USER filtering procedure. Published traffic has already undergone destination translation there, so rules matching the original host address or port require the documented connection-tracking approach. For the nftables backend, follow Docker's nftables firewall procedure; do not assume a DOCKER-USER chain exists.
3. Make policy persistent: use the mechanism appropriate to the identified firewall manager, preserving administrative access and existing container rules. Verify behavior after a firewall reload and host reboot.
4. Check the network edge: remove any DNS port forwarding, and restrict inter-VLAN or guest-network routes to the server. Never disable Docker firewall management as a shortcut.
5. Define acceptance tests: an approved LAN client must resolve over both UDP and TCP. A client on each relevant untrusted path must not obtain an answer.

This article does not supply interchangeable firewall commands because the installed backend and existing policies are not known. Completing the authoritative procedure for your identified stack is a prerequisite, not an optional hardening task. If you cannot identify or manage that stack, stop before deployment and obtain help from the network administrator.

Treat IPv4 and IPv6 separately

The supplied configuration publishes DNS over IPv4 only. It contains no [::]:53 or other IPv6 publication. IPv4 DNS can still answer AAAA queries, so clients can resolve IPv6 destinations through this resolver without an IPv6 DNS listener.

Review router advertisements and DHCPv6 independently. Ensure they do not advertise an unintended external resolver. Do not advertise the host's IPv6 address as DNS unless you have separately configured and tested an IPv6 listener, Docker networking, stable addressing, and IPv6 firewall rules. IPv4 restrictions do not automatically protect IPv6. Do not casually disable IPv6 on a network that depends on it.

A public secondary resolver is a bypass, not filtered redundancy

Clients may use either advertised DNS server during normal operation. A public secondary can therefore bypass filtering. For redundancy, deploy a second filtering resolver with equivalent rules and upstream settings, and test it independently. With one server, accept the outage risk and retain a documented procedure for restoring the router's previous DNS values.

Inspect port 53 before changing the host resolver

Do not assume Ubuntu, Debian, or Raspberry Pi OS always uses the same resolver. Inspect the actual listener and how /etc/resolv.conf is managed:

sudo ss -lntup | grep -E '(:53[[:space:]]|:53$)' || true
systemctl is-active systemd-resolved || true
readlink -f /etc/resolv.conf
cat /etc/resolv.conf
resolvectl status 2>/dev/null || true

A listener at 127.0.0.53:53 normally need not conflict with publication at a different, explicit LAN address. Leave it alone unless a real binding conflict occurs. A wildcard listener or another service on the chosen LAN address requires a service-specific decision. Check dnsmasq, Unbound, BIND, and existing containers before disabling anything.

Conditional systemd-resolved procedure

Only use this procedure if the stub actually conflicts and /run/systemd/resolve/resolv.conf contains usable upstream resolvers. The resolved.conf documentation explains DNSStubListener; the systemd-resolved service documentation explains resolver-file modes. Using the non-stub file can change split-DNS behavior, especially on VPN-connected hosts.

First preserve the original file or symbolic link. Do not overwrite an existing recovery backup or an existing override named adguardhome.conf.

sudo cp -a /etc/resolv.conf /etc/resolv.conf.pre-adguard
cat /run/systemd/resolve/resolv.conf

Continue only after confirming that file contains appropriate upstream entries and your backup is intact:

sudo mkdir -p /etc/systemd/resolved.conf.d
sudo tee /etc/systemd/resolved.conf.d/adguardhome.conf <<'EOF'
[Resolve]
DNSStubListener=no
EOF

sudo rm -f /etc/resolv.conf
sudo ln -s /run/systemd/resolve/resolv.conf /etc/resolv.conf
sudo systemctl restart systemd-resolved
getent hosts example.com
sudo ss -lntup | grep -E '(:53[[:space:]]|:53$)' || true

This disables the stub, not the entire service. It does not prematurely make the host depend on AdGuard Home at 127.0.0.1, where this tutorial does not publish DNS.

sudo rm -f /etc/systemd/resolved.conf.d/adguardhome.conf
sudo rm -f /etc/resolv.conf
sudo cp -a /etc/resolv.conf.pre-adguard /etc/resolv.conf
sudo systemctl restart systemd-resolved
getent hosts example.com

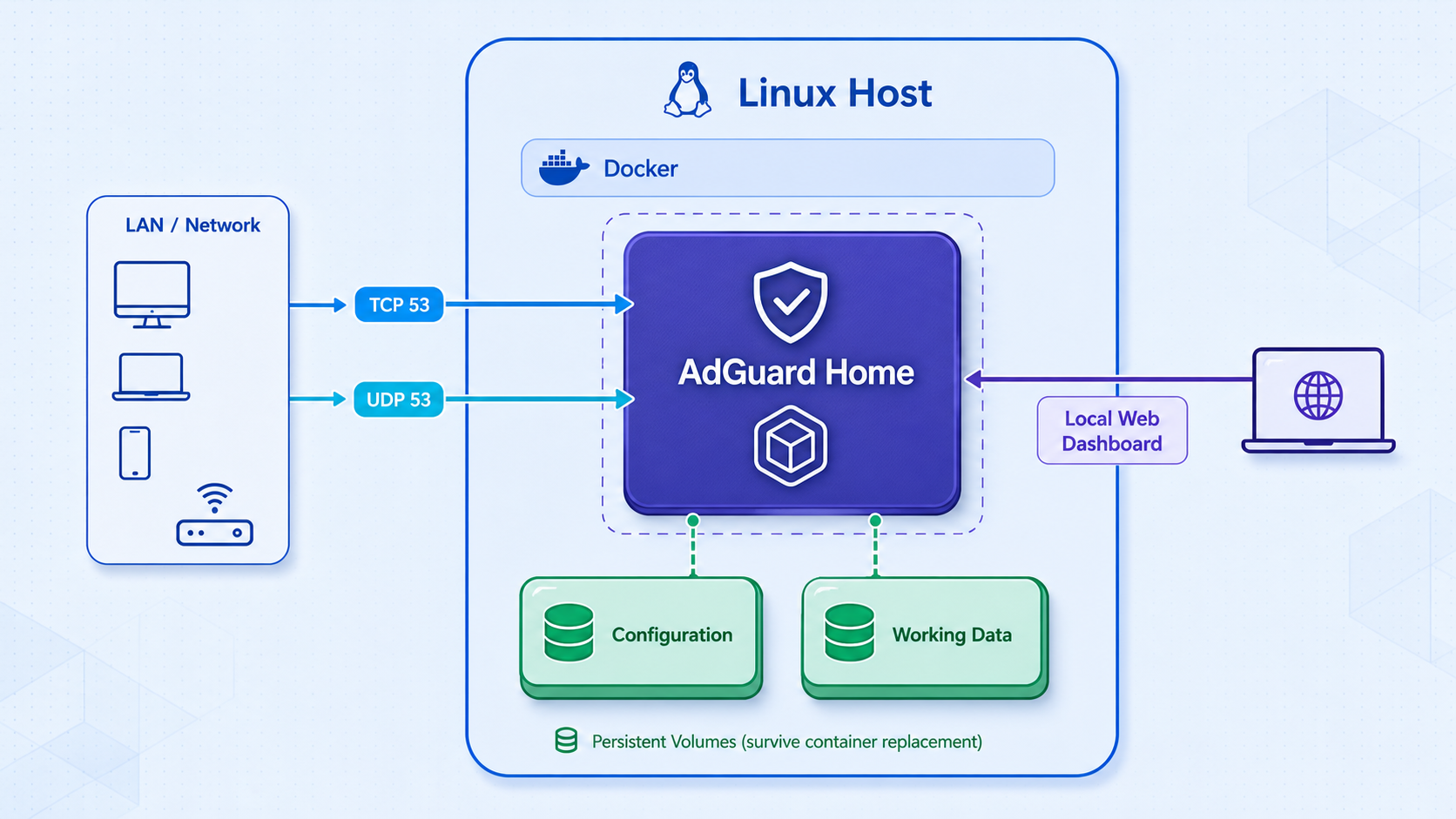

Install AdGuard Home with Docker Compose

The official AdGuard Home Docker guide documents the adguard/adguardhome image, persistent directories, initial setup on port 3000, and container update workflow. The Compose port reference explains host-address bindings. We map the ongoing administration service from container port 80 to host loopback port 8080.

mkdir -p adguard/work adguard/conf
cd adguard

Create .env in this directory. Replace the example address with the private IPv4 address already assigned to this host:

ADGUARD_LAN_IPV4=192.168.1.10

Create compose.yaml:

services:
  adguardhome:
    image: adguard/adguardhome:latest
    container_name: adguardhome
    restart: unless-stopped
    volumes:
      - ./work:/opt/adguardhome/work
      - ./conf:/opt/adguardhome/conf
      - /etc/localtime:/etc/localtime:ro
    ports:
      - "${ADGUARD_LAN_IPV4:?Set a private LAN IPv4 address}:53:53/tcp"
      - "${ADGUARD_LAN_IPV4:?Set a private LAN IPv4 address}:53:53/udp"
      - "127.0.0.1:3000:3000/tcp"
      - "127.0.0.1:8080:80/tcp"

The required-variable expression prevents an unset value from silently becoming a wildcard mapping. It does not validate that your chosen address is private or belongs to the host. Inspect the rendered configuration before starting:

docker compose config
# Continue only after completing the firewall prerequisite.
docker compose up -d
docker compose ps
docker compose logs --tail=100 adguardhome

Open the setup wizard

On the server, browse to http://127.0.0.1:3000. For a headless server, run this from your workstation and keep the SSH session open:

ssh -N -L 3000:127.0.0.1:3000 -L 8080:127.0.0.1:8080 your-user@SERVER_LAN_IP

Then open http://127.0.0.1:3000 on the workstation. The second forward provides access to the dashboard after onboarding. If either local port is occupied, select another workstation-side port and adjust the browser URL accordingly.

Configure DNS on container port 53 and administration on container port 80. Select interfaces that include the container's network interface, not only container loopback. The host's private LAN address is not an interface inside this bridge-networked container. Host publication supplies the external access boundary.

Create a unique administrator username and strong password, then test http://127.0.0.1:8080. The wizard may offer a link using its container-side port; use the mapped host URL instead. Remove the following line from compose.yaml after successful onboarding:

      - "127.0.0.1:3000:3000/tcp"

docker compose up -d
docker compose ps
docker port adguardhome
sudo ss -lntup | grep -E '(:53[[:space:]]|:8080[[:space:]]|:3000[[:space:]])' || true

Expect DNS at your chosen private address, dashboard access at 127.0.0.1:8080, and no published setup port. Docker may implement publication through NAT without a visible userspace listener, so ss is supplementary, not a complete exposure audit.

Choose upstream DNS without creating loops

In DNS settings, select upstream resolvers appropriate to your availability and privacy requirements. Use the available upstream test function, then issue direct queries and inspect logs. Encrypted upstream hostnames may need suitable bootstrap resolvers so they can be resolved before the encrypted connection is established.

Do not forward AdGuard Home to itself or to a router that forwards back to AdGuard Home. Such loops cause timeouts. Upstream logging, filtering policy, jurisdiction, and validation behavior remain separate choices from installing AdGuard Home.

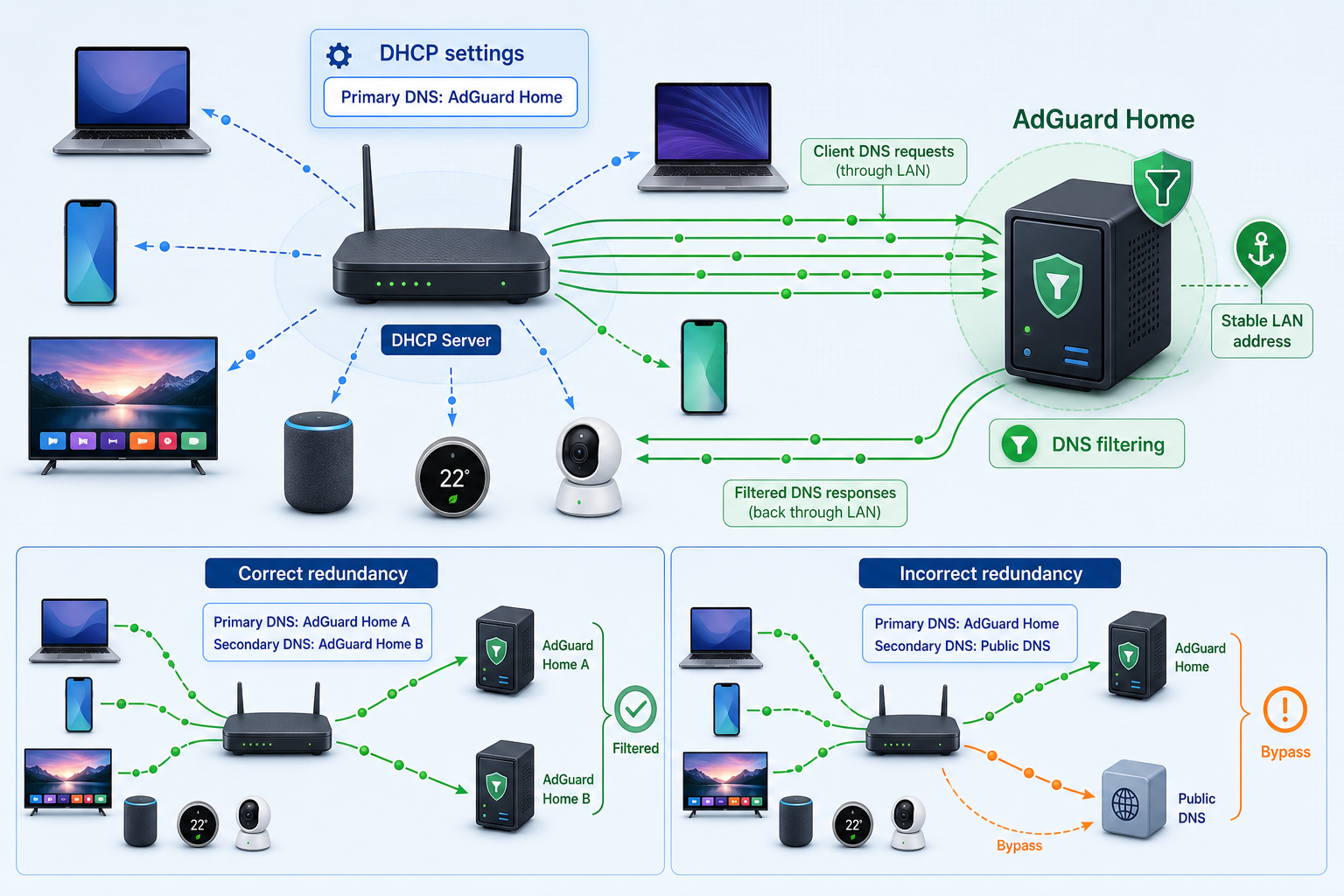

Configure router DHCP and client DNS

Change DHCP only after direct UDP and TCP tests in the verification section succeed. Router interfaces vary: LAN DHCP DNS controls client resolver distribution, while WAN DNS may control only the router's own upstream behavior.

1. Confirm the server owns its reserved address and no duplicate exists.
2. Test direct DNS queries from an approved LAN client.
3. Set the LAN DHCP DNS value to the server's private IPv4 address.
4. Remove unintended public secondary DNS values.
5. Review IPv6 router advertisements and DHCPv6 for external resolver bypasses.
6. Renew a test client's lease, reconnect its network interface, or wait for renewal.
7. Inspect the resolver actually received before rolling out to the remaining clients.

# Linux with systemd-resolved
resolvectl status

# Linux with NetworkManager
nmcli device show | grep -E 'IP4.DNS|IP6.DNS'

# macOS
scutil --dns

# Windows Command Prompt
ipconfig /all

Some routers advertise themselves and proxy requests to the configured resolver. That can work, but the query log may identify the router instead of individual clients. Verify the router's upstream path and ensure it does not form a forwarding loop.

Choose DNS-compatible filters and narrow exceptions

Start with AdGuard Home's default DNS filter and the curated catalog in the installed dashboard. Review each list's scope, ownership, syntax, and maintenance status. More rules do not automatically mean better results.

The official AdGuard Home filtering syntax documentation explains supported DNS rules, including hosts-style entries and supported Adblock-style rules. Cosmetic selectors, scriptlets, and browser URL-path rules cannot be applied meaningfully to DNS requests.

Enable a small baseline, then observe. When an application breaks, reproduce the problem while watching the query log. Identify the hostname and matching rule, allow only what is necessary, and retest. Avoid broadly allowing a parent domain without evidence.

Verify the complete deployment

1. Inspect container state and publications

Run commands from the project directory. Confirm the service is running without repeated startup errors:

docker compose ps
docker compose logs --tail=100 adguardhome
docker port adguardhome
docker inspect adguardhome --format '{{json .NetworkSettings.Ports}}'
sudo ss -lntup | grep -E '(:53[[:space:]]|:8080[[:space:]])' || true

DNS publications must show only your intended private IPv4 address. No wildcard IPv4 or IPv6 DNS publication belongs in this example. Dashboard publication must remain 127.0.0.1:8080. Inspect Docker's actual firewall behavior alongside these outputs.

2. Test direct UDP and TCP DNS

From another approved LAN device with dig installed, run:

dig @SERVER_LAN_IP example.com A
dig +tcp @SERVER_LAN_IP example.com A
dig @SERVER_LAN_IP example.com AAAA

The first normally uses UDP; the second explicitly tests TCP. Both matter. The third demonstrates that IPv6 record lookup can work over an IPv4 DNS transport. Match requests to the query log.

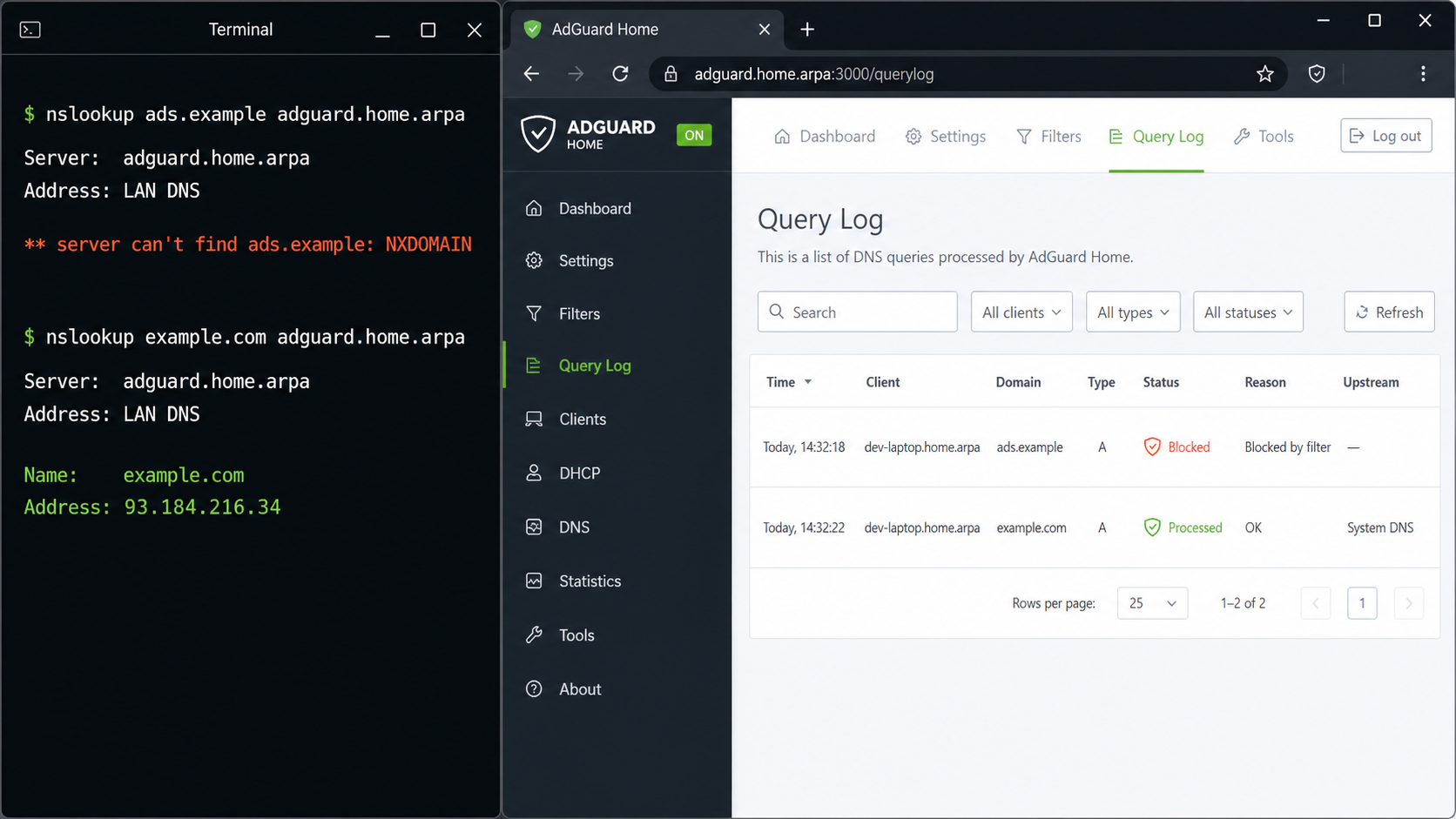

3. Perform a controlled blocking test

Add this temporary custom rule in AdGuard Home:

||example.org^

dig @SERVER_LAN_IP example.org A

Confirm the query log identifies the temporary rule as the reason for blocking. The answer depends on the configured blocking mode. Remove the rule, repeat the query, and confirm it is allowed. This avoids relying on an advertising domain that might disappear from a list.

4. Verify DHCP and normal application traffic

Renew a client lease and inspect its active resolver values, including IPv6 entries. Open ordinary sites and applications, then find corresponding requests in the log. Missing entries can indicate cached answers, browser secure DNS, a VPN, manual resolver settings, or an external IPv6 resolver.

5. Test denied paths, not just allowed paths

From a guest VLAN or another untrusted network you control, attempt both UDP and TCP queries to the server address if a route exists. Neither should return a DNS answer. Where the host has a public interface, separately test that address from outside the LAN. For globally reachable IPv6 addresses, test IPv6 paths as well. A timeout alone can have several causes, so correlate results with firewall policy and counters where available.

If an untrusted client receives answers, stop the container and correct the policy before continuing. Repeat the checks after a reboot or firewall reload. An allowed LAN test alone cannot establish that the resolver is private.

6. Verify web isolation

On the host, http://127.0.0.1:8080 should work. From another LAN device, http://SERVER_LAN_IP:8080 should not. Port 3000 should no longer be published. If these expectations fail, inspect mappings, Docker version, reverse proxies, routing, and firewall rules.

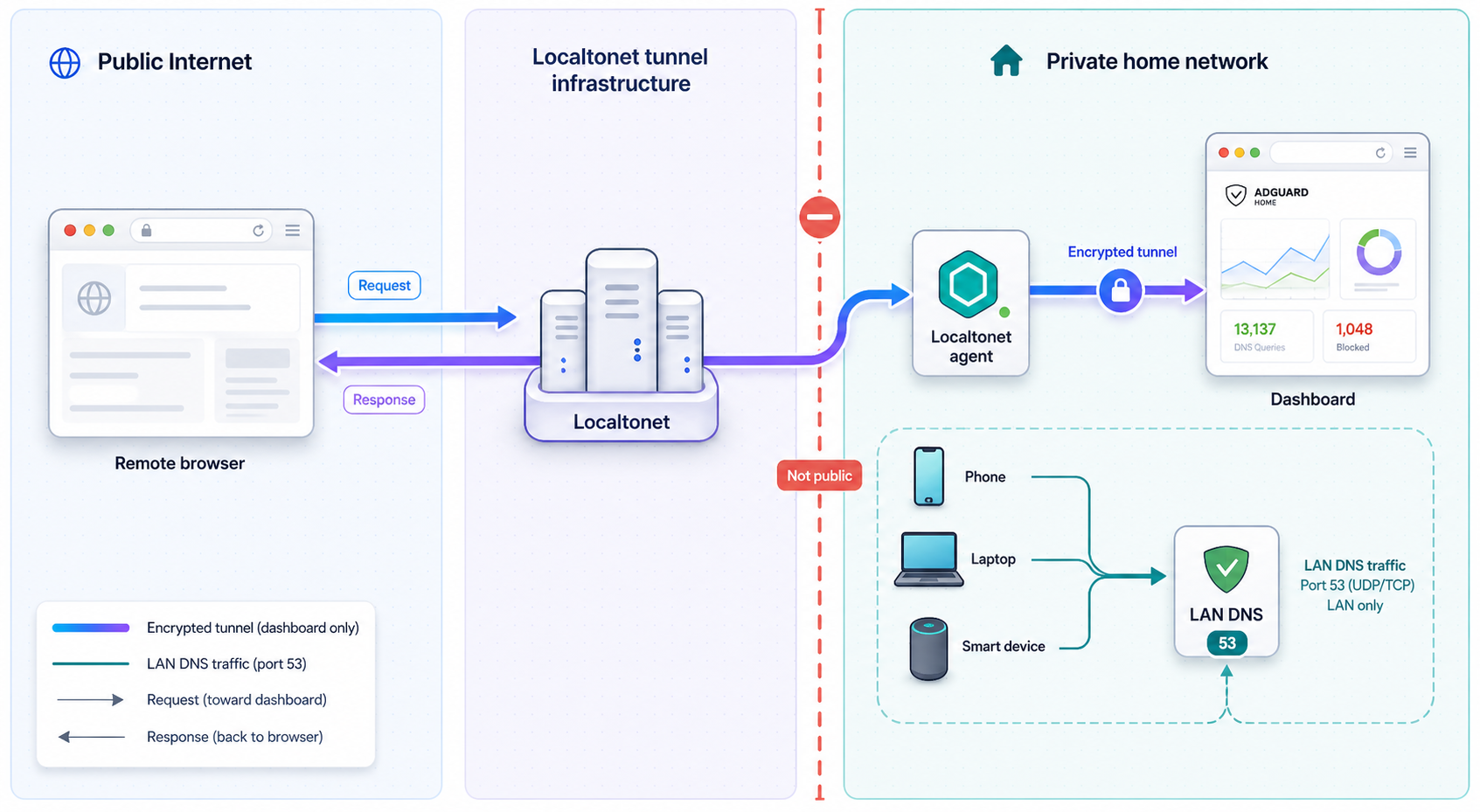

Expose only the dashboard with Localtonet

With Localtonet, you can obtain a public HTTPS address for the dashboard without inbound router port forwarding, inbound firewall changes, VPN setup, or a public IP address. Our client establishes an outbound connection to a relay and forwards HTTP requests to 127.0.0.1:8080.

This requires the Localtonet client to run directly on the AdGuard Home host, in the same host network namespace. On another machine, 127.0.0.1 means that other machine. A normally isolated client container also has its own loopback interface. Neither can use this target to reach the host dashboard.

This tutorial intentionally retains the same-host design. An alternate-device design would require a separate private-address dashboard binding and a Docker-aware access policy permitting only the approved client device. It is not a drop-in substitution for this loopback setup.

The Localtonet HTTP tunnel documentation provides current options. OS-specific installation commands are not reproduced here because they vary and are not established for the chosen host. Creating a tunnel does not start it: the selected client must remain connected and the tunnel must be running. A reboot does not prove either condition has been restored.

This HTTP tunnel exposes only the dashboard, not DNS port 53. It is not a VPN and does not change client DNS settings. The private DNS firewall policy remains independently necessary.

Back up, update, recover, and monitor

Create a consistent backup

Back up conf, work, compose.yaml, and .env. Protect archives because they can contain credentials, client activity, and network information. Stopping the service produces a consistent maintenance backup but causes a DNS outage unless another filtering resolver is available.

Run from the project directory. Use a private archive permission mask and preserve file ownership through privileged tar:

BACKUP="../adguard-backup-$(date +%Y%m%d-%H%M%S).tar.gz"
docker compose stop
sudo sh -c 'umask 077; tar -czpf "$1" compose.yaml .env conf work' sh "$BACKUP"
docker compose start
docker compose ps
sudo tar -tzf "$BACKUP"

Inspect every command result. Restart the service even if archive creation fails, then correct the backup problem. Store a protected copy elsewhere and test restoration in an isolated environment without publishing a duplicate DNS service on your production address.

Record the running image before pulling

Follow the official container update procedure, not an in-container binary update. Review AdGuard Home release notes first. The example uses latest; a selected version or digest is preferable when you need deterministic deployments.

Record the image actually used by the running container, rather than assuming the current local latest tag still identifies it:

OLD_IMAGE_ID=$(docker inspect adguardhome --format '{{.Image}}')
docker image inspect "$OLD_IMAGE_ID" --format '{{json .RepoDigests}}'
ROLLBACK_TAG="adguardhome-local:rollback-$(date +%Y%m%d-%H%M%S)"
docker image tag "$OLD_IMAGE_ID" "$ROLLBACK_TAG"
printf '%s\n' "$ROLLBACK_TAG" > rollback-image.txt

Retain that tag without pruning it. Save the matching pre-update backup and image details together. For recovery onto a different host, retain a pullable digest or separately export the image; a local tag is not a remote registry copy.

docker compose pull
docker compose up -d
docker compose ps
docker compose logs --tail=100 adguardhome

Repeat UDP and TCP queries, a controlled filtering test, query-log checks, dashboard access, and denied-path tests after updating.

Roll back the image and its matching data

Do not assume an older image can read configuration modified by a newer release. During a maintenance window, stop the service, retain failed-state data for diagnosis, and restore the corresponding pre-update archive. Substitute the actual backup filename below:

docker compose stop
FAILED_DIR="../adguard-failed-$(date +%Y%m%d-%H%M%S)"
mkdir "$FAILED_DIR"
sudo mv conf work "$FAILED_DIR"/
sudo tar -xzpf ../adguard-backup-YYYYMMDD-HHMMSS.tar.gz -C .
cat rollback-image.txt

Edit the restored compose.yaml so its image: value uses the recorded rollback tag or preserved digest, not latest. Confirm the restored .env still contains the correct private address:

docker compose config
docker compose up -d --pull never
docker compose ps
docker compose logs --tail=100 adguardhome

The --pull never option requires the rollback image to exist locally. Verify that before beginning recovery. Restore ownership and permissions from the archive, then repeat the full verification sequence before re-advertising a repaired resolver.

Check reboot behavior and routine health

restart: unless-stopped requests restart when Docker starts, unless the container was intentionally stopped. It cannot repair missing storage, unavailable addresses, occupied ports, invalid configuration, or a failed Docker daemon.

docker compose ps
docker compose logs --tail=100 adguardhome
docker port adguardhome
getent hosts example.com

After a reboot, query from a separate client and retest firewall boundaries. The host's getent result tests its own resolver path, which may intentionally differ from AdGuard Home. If using Localtonet, verify client connection, tunnel state, and an external browser request.

• Review logs and query trends after host or network changes.
• Confirm filter updates and remove obsolete custom exceptions.
• Monitor disk space for working data and backups.
• Recheck IPv4 and IPv6 resolver distribution after router firmware updates.
• Retest policy persistence after firewall reloads.
• Review whether continuous public dashboard access is still justified.

Troubleshoot common failures

Port 53 is already in use

Inspect sudo ss -lntup and docker ps. Identify the exact address and owning process. A loopback stub may coexist with the private-address mapping; a wildcard listener may not. Resolve ownership deliberately rather than disabling every DNS service or repeatedly restarting Docker.

Docker cannot bind the chosen address

Check ip -4 address, .env, and docker compose config. The address must belong to this host and be available when the container starts. A DHCP reservation on the wrong interface or a changed subnet can invalidate it.

The host loses DNS before the container starts

Restore its saved resolver configuration and verify getent hosts example.com. Do not point it to 127.0.0.1: DNS is not published there in this design. Avoid a boot dependency where image downloads require a resolver that has not started yet.

LAN queries time out

Check the stable address, container logs, container-side DNS binding, both protocol publications, Docker-aware firewall rules, VLAN policy, and wireless client isolation. A successful host-local query does not prove another segment can reach the service.

Clients keep the old resolver or bypass filtering

Renew leases and distinguish WAN DNS settings from LAN DHCP settings. Inspect browser secure DNS, Android Private DNS, VPN profiles, endpoint-security software, manually configured resolvers, and IPv6 advertisements. Managed devices may enforce organizational DNS; change only settings you are authorized to manage.

A site or application breaks

Correlate the failure timestamp with blocked queries. Temporarily allow the narrowest required hostname, retest, and document the exception. If no related request is blocked, investigate application caching or a non-DNS cause rather than disabling filtering globally.

IPv6 clients bypass AdGuard Home

Inspect advertised IPv6 DNS values. An external IPv6 resolver can be selected even when IPv4 DHCP is correct. Correct advertisements for this IPv4-transport design, or separately engineer a protected IPv6 DNS service. Do not advertise an unconfigured IPv6 listener.

DNS fails intermittently or upstream queries loop

Check for an unfiltered secondary, inconsistent filtering servers, host suspension, address changes, and upstream timeouts. Trace every forwarding hop. AdGuard Home forwarding to the router while the router forwards back to AdGuard Home is a loop, not redundancy.

The dashboard is unavailable after onboarding

Confirm the wizard selected container port 80 and a non-loopback container interface. The external URL is http://127.0.0.1:8080, not container port 80. For SSH access, ensure the 8080 forward remains open.

The local dashboard works but the Localtonet URL does not

Verify our client runs directly on the same host, not another machine or an isolated container. Confirm local dashboard access, the correct device token, a connected client, an available relay, target 127.0.0.1:8080, and an explicitly started HTTP tunnel. Test from outside the LAN.

The server is unavailable and clients cannot resolve names

Use the recovery device to restore previous router DNS values and renew affected leases. Repair the host or restore a known-good backup, then test directly before distributing its address again. If availability is critical, deploy a second equivalent filtering resolver.

Frequently asked questions
